@siko1056

Tags: #octave

Can git and Mercurial work together?

Many popular source code hosting services do not support Mercurial (in short “hg”). After Bitbucket announced the “sunsetting” of Mercurial repositories in April 2020, only good old SourceForge and GNU Savannah still support hg.

Anyways, GNU Octave still uses Mercurial and due to my GSoC mentoring for Octave this year, I was curious how well git and Mercurial work together. The big idea I have in mind is:

  • to find a nice addition (replacement?) for the rusty Octave patch tracker on GNU Savannah.
  • Contributors can make usual “merge requests” in a nice and modern web interface or via git commands. Then Octave maintainers can easily pick them up to convert them to hg patches for application to the main repository.

I’ll show how to archive this.

Converting hg to git repositories

No worries, this step can be omitted.

mtmiller, the maintainer of two unofficial Octave forks on GitLab end GitHub, explained to me that he uses git-cinnabar to create and update these forks from the official GNU Octave Mercurial repository.

In the README.md of git-cinnabar and by own research on the web, I found that there are many tools for this purpose.

I gave it a short try myself after installing git-cinnabar:

hg  clone https://www.octave.org/hg/octave octave-hg
# The following is a git-cinnabar extension
git clone hg::octave-hg octave-git

But I continue to use the solution from mtmiller as upstream to not duplicate efforts.

Applying GitLab “merge requests”(*) to Mercurial

(*)For those who are more familiar with GitHub, GitLab “merge requests” are “pull requests” in GitHub slang.

First, I created a fork https://gitlab.com/siko1056/octave of mtmiller’s upstream repository on GitLab.

In my fork, I used the online editor from GitLab, to make a meaningless change on the “master” branch and created a merge request to mtmiller’s upstream repository at GitLab.

This “merge requests” or individual commits can be conveniently exported to patches from GitLab, without cloning the whole Octave fork, adding other remotes, etc. See the picture below showing the “merge request” view and how to download the associated patch.

gitlab export patch

Unfortunately, this export button does not exist in GitHub. A nice trick that works for GitLab and GitHub is to append .patch the commit ID in the URL, e.g.

https://gitlab.com/siko1056/octave/-/commit/4d43501fc2a442b179b2327ad8379a19d224323c.patch

This automatically generates a git patch and this feature can nicely be exploited by tools like wget or curl or be posted on Octave’s patch tracker.

Finally, I saved the exported git patch as bug-42424-git.patch on my machine.

Applying git patches to Mercurial works almost perfect!

Only the second blank line in the commit message gets stripped, which is part of Octave’s guidelines. Thus for importing git patches it is recommended to add --edit option

hg import --edit bug-42424-git.patch

to directly fix the commit message, or to call hg commit --amend after the import succeeded.

Basically, that is it.

Can the conversion be better/easier?

The short answer is: Not really.

In case a genuine Mercurial patch is needed, I did not find a great tool to convert git to hg patches. I succeeded using moz-git-tools and shortly explain what I did. But for me this is not the “easy way” to go.

One can either obtain the git patch as described above, or by cloning the GitLab fork:

git clone https://gitlab.com/siko1056/octave.git octave-git
cd octave-git
git format-patch -1 HEAD --stdout > ../bug-42424-git.patch
cd ..
cp bug-42424-git.patch bug-42424-hg.patch
git-patch-to-hg-patch  bug-42424-hg.patch  # moz-git-tools

Going to the Octave Mercurial clone to apply the converted patch preserves the newline in the commit message.

hg clone https://www.octave.org/hg/octave octave-hg
cd octave-hg
hg patch ../bug-42424-hg.patch

Finally, I exported the imported patch again to get an impression about the “quality” of the conversion.

hg export > ../bug-42424-real-hg.patch

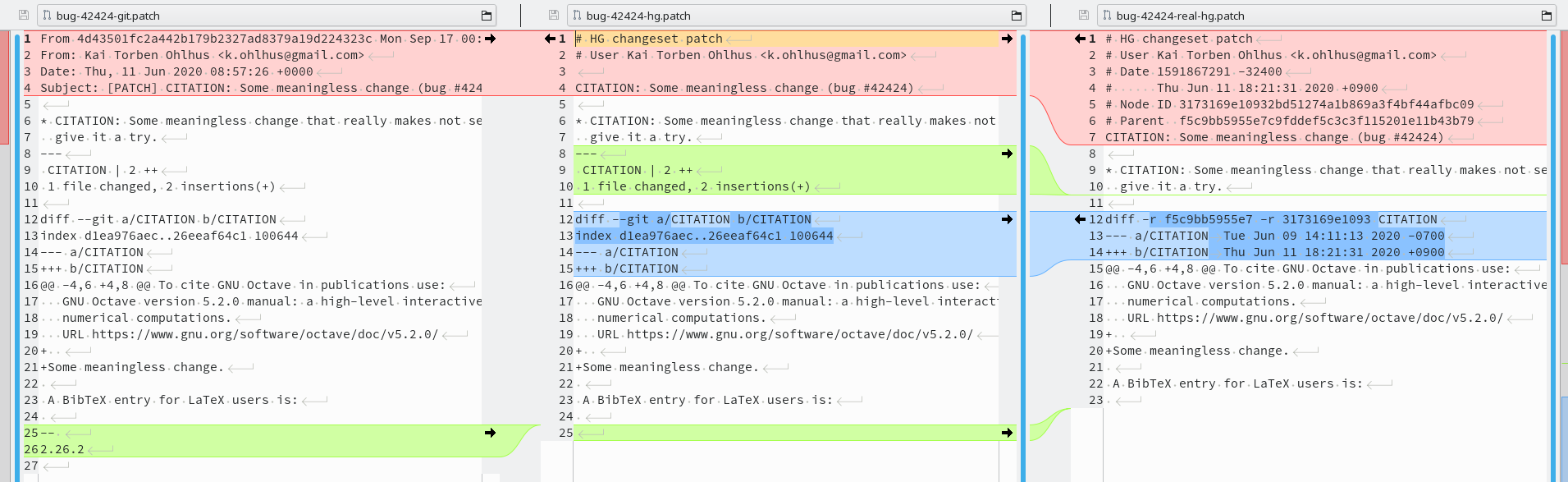

The differences between all patches can be seen in this large picture.

Summary

  • Octave development using GitLab/GitHub is possible.
  • Sending Octave developers git patches is perfectly fine. Their application is as easy as genuine hg patches (except for the blank second line).
  • Using an intermediate conversion from git to hg patches is not worth the pain.
